Product Name:
single head graver max
No. :
BB659
:
:


Specification:



air pressure0-3kg/cm2
Voltage220V
Power80W
Weightabout 7.5kg
RPM1400 r/min

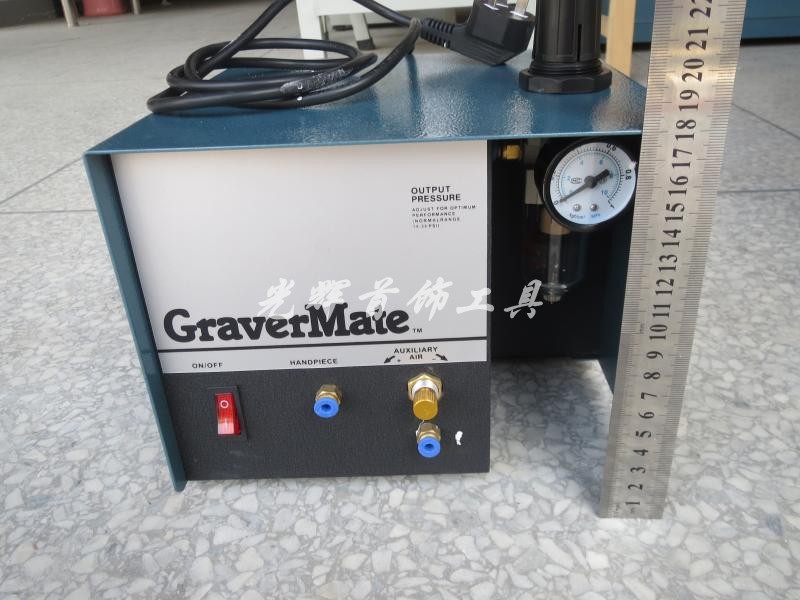

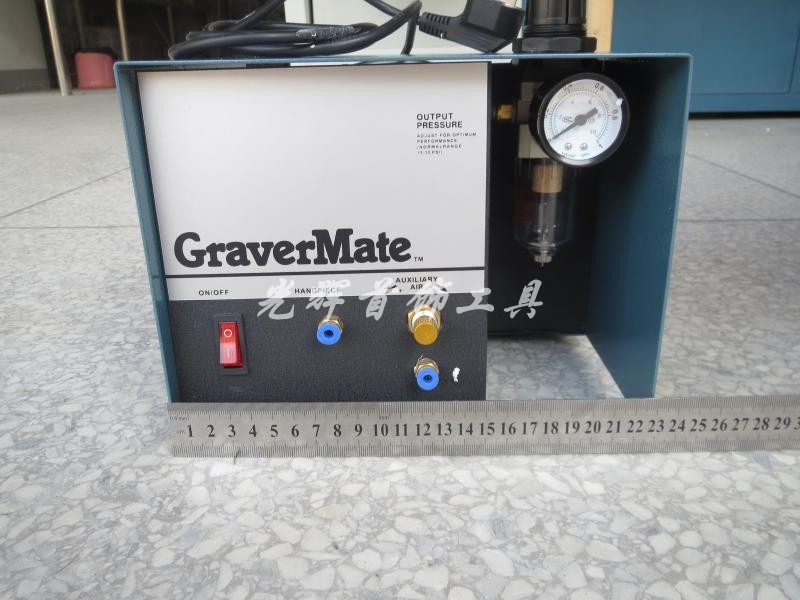

Diamesion230*180mm
Packing Size35X32X25cm



Apllication:

1.With a Graver single ended impact handpiece, you can raise beads and bright cut jewelry with 80% less effort than by hand.



2.You can hammer set bezels and channels without breaking stones. Graver Mate gives you enough power to deeply engrave gun and knife steel plus fine control for delicate work in gold and silver.



3.In wood, you can easily carve even hardwoods across grain.



There\\\'s power to quickly texture many materials in jewelry and artistic applications.



4.With an ultra high-speed rotary handpiece, Graver single ended gives you dozens of additional opportunities for your work.



5. Used by professionals, Graver Mate is a serious tool that lasts for years. Equally important, it helps beginners achieve success.



6. With this tool you can beautifully engrave even tough gun steel with ease.

Installation:

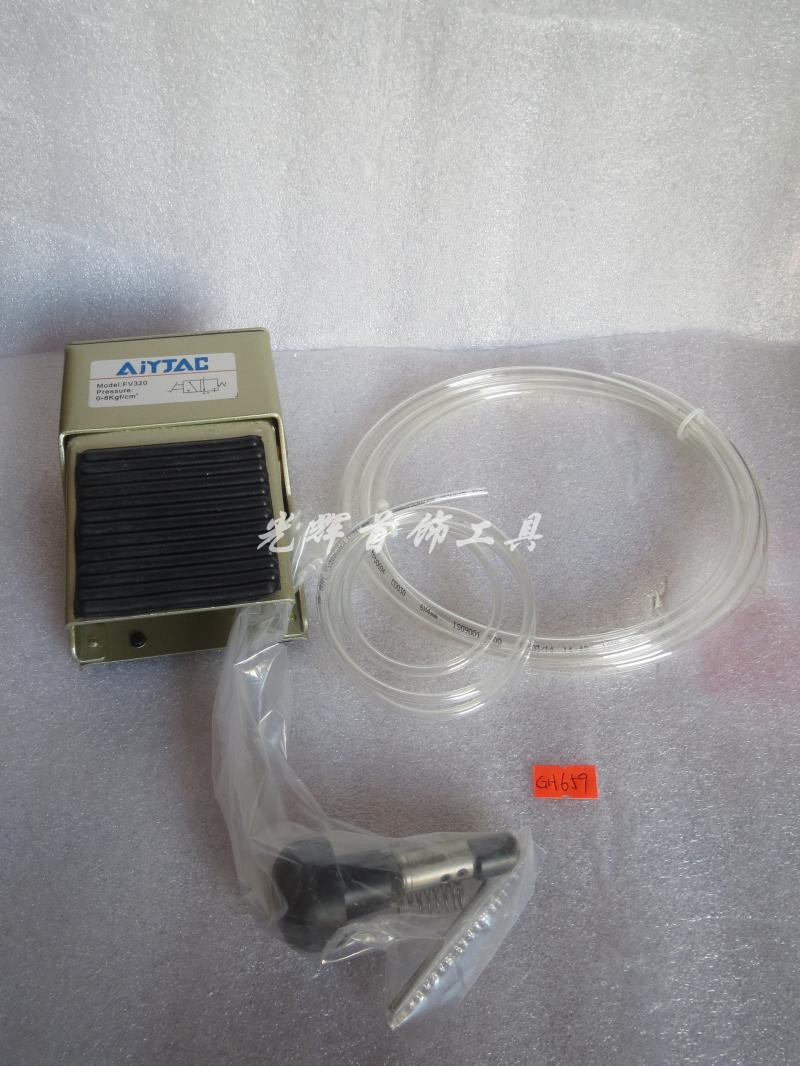

1: connect foot switch with interface on the panel of graver

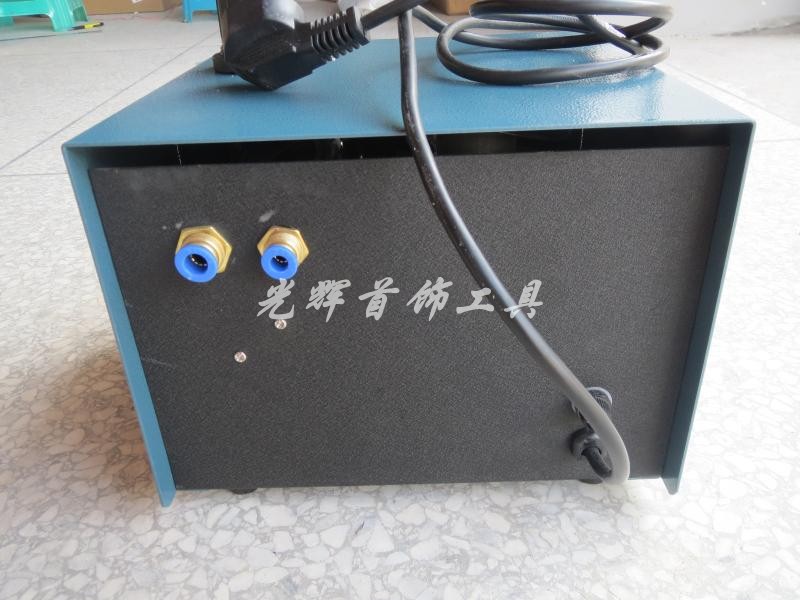

2 : Insert compressor outlet pipe into the air intake on the back of the engraving machine.We recommend to install Gate valve and watershed filter between the piping of compressor and engraving machine to improve machine performance.

Operation:

1: The first step is to turn off the pressure adjustment knob and rotate handle switch, to avoid too much pressure damaging the pressure relief valve and pressure counter.

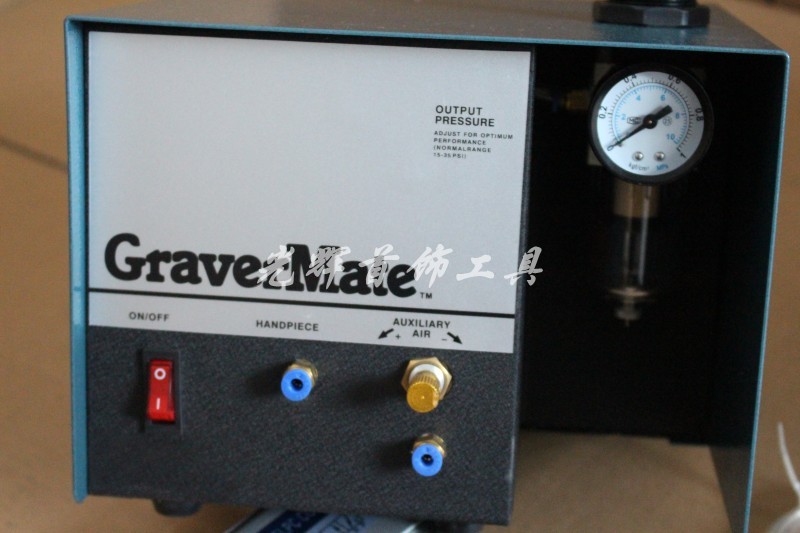

2 : connect power, turn on the power switch. ( indicator Lights )

3 :Set the switch in position 1 or 2

4 : Adjust the air pressure and speed , hand carved handle, foot switch pedal action to the maximum , slowly adjust the pressure knob. Pressure gauge indicates 1.5 ~ 2KG/CM2, while adjusting the speed dial , both with regulating the use of carved handle the biggest impact , press the pressure adjustment knob.

5 : Relax foot switch, carved handle stopped working.

6: To switch the carved handle , turn the handle set with the switch of 1 or 2 andposition( make it in the proper position)

7 : If you need to work with the rotary engraving handle , please turn off the power switch , turn the rotary switch handle , adjust the pressure knob.

8 : When working with foot switch, you can control the impact from small to big with opening.

Maintenance:

1.An engraving machine after a period of use , the machine should be put back in the valve cup to be drained .

2 add 10# machine oil in two of the sculpture handle

3 If there is defect , please do not blindly disassemble it, and mail to us to request solution
